Snare Stand Assembly & Adjustment
The snare stand is shipped in two parts: the base and basket section. To assemble the base, open the legs to form a stable tripod and tighten the wing bolt as shown above.
Unfold the basket section as shown above.
Insert the post of the basket into the base as shown above·set the height about halfway.

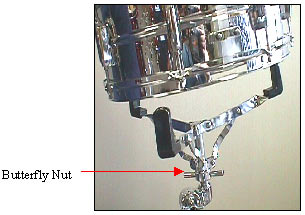

Open the arms of the basket and adjust the butterfly nut (if necessary) to accommodate the snare drum. Place the snare drum into the basket.
Tighten the butterfly nut as shown until the snare drum is snug. Note: Do not over-tighten·overtightening can choke the sound and/or cause damage to the snare drum.
