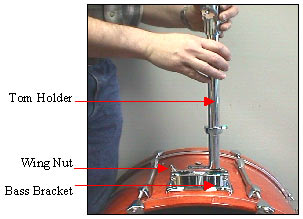

Secure the tom holders into the bass bracket as shown above.

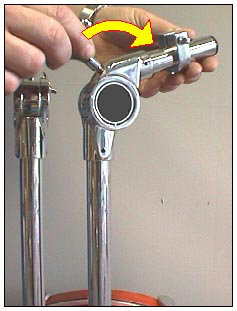

Set the short arms at approximately 90° to the long arms as shown above.

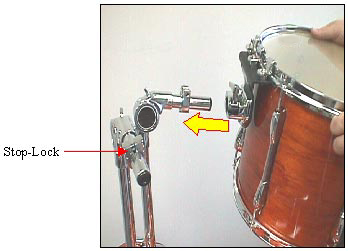

Insert the tom holder arm into the tom bracket as shown. If necessary, loosen the wing nut on the tom bracket to allow the tom arm to fit. Tighten the wing nut on the tom bracket to secure the tom. Repeat with the other tom.

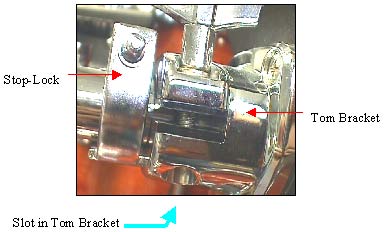

Each tom holder has two Stop-Locks: one each on the long and short arms. The photo above shows the Stop-Lock fitted to the tom bracket. When properly attached, the Stop-Lock fits flush against and into the slot in the bracket.

For now, "ball park" the height, tilt, and closeness of the toms·you'll "fine-adjust" these later.

Note: Right-handed drummers usually set up the smaller of the mounted toms to the left. However, there's no right or wrong; after all, it's your kit!
