Stand the floor tom shell vertically with the
leg brackets toward the floor.

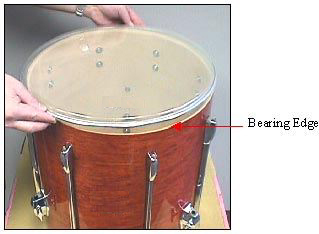

Place the drumhead onto the top bearing edge
as shown above.
Fit the rim onto the head so it surrounds he metal
ring around the head. Align the ears (the
flanges with holes) over the lugs as shown
Insert the tension rods through the holes in the ears
and thread them into the swivel nuts. Finger tighten
the rods for now; we'll discuss tuning later.
Turn the drum over and do the other side.

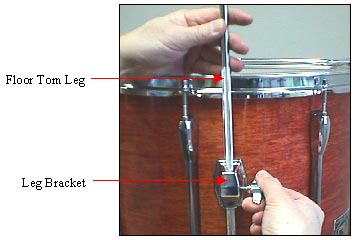

When
done, insert the floor tom legs into the leg brackets
and secure them about halfway up.
